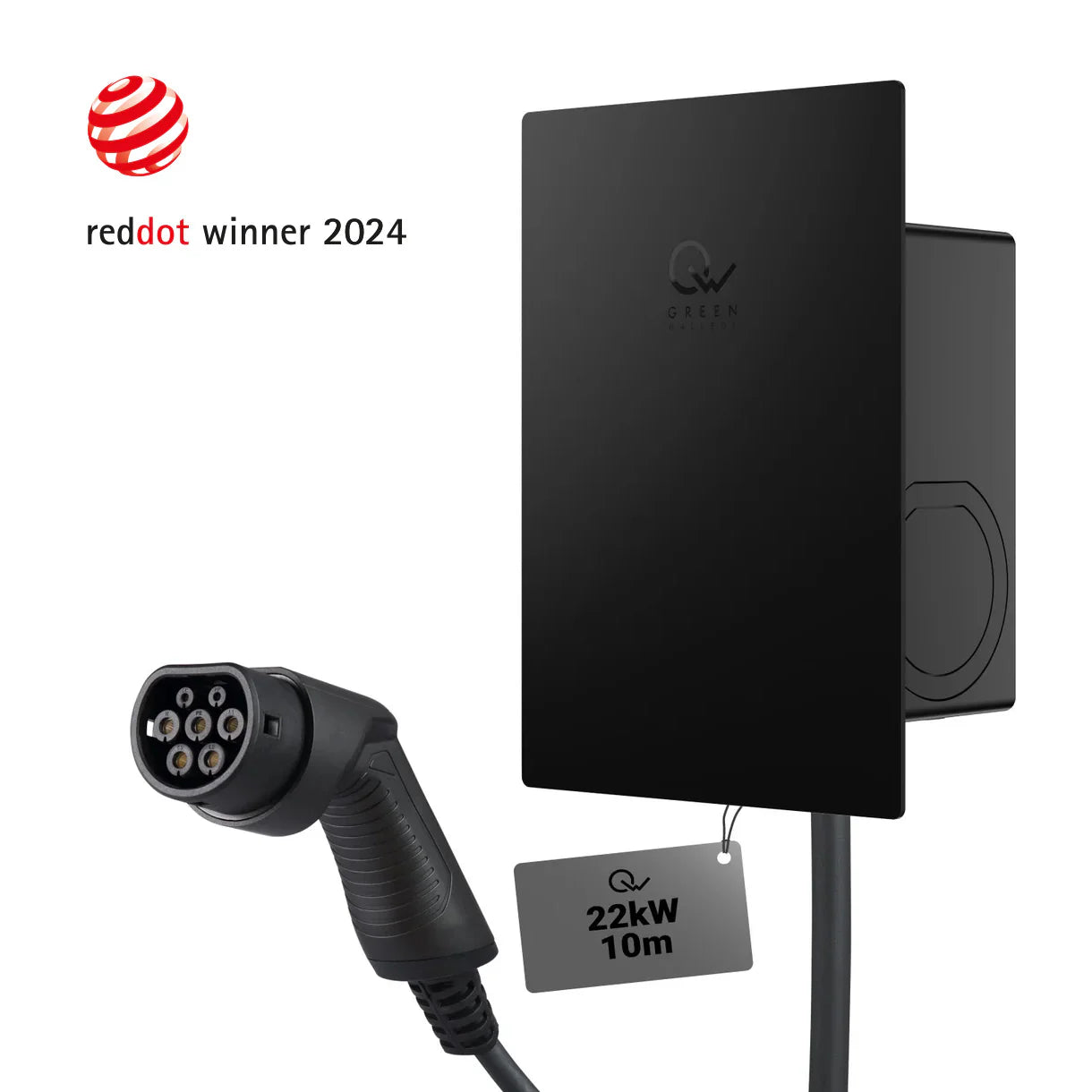

Green Wallbox 2 Pro Max 22kW

€759,00 EUR
Tax included.

Power: 22kW
Cable lenght: Type 2 Socket
Warranty: 3 years door-to-door
5 in stock
  • Free shipping on all EU orders of 100€
  • 30 days money back guarantee
  • 3-years warranty
  • Made in EU
Compatibility

Compatible with all cars with Type 2 socket - Learn more >

Cable lenght: Type 2 Socket
Warranty: 3 years door-to-door

Green Wallbox 2 Pro Max 22kW

Art of charging

Meet the new generation of electric car charging stations.

Green Wallbox 2 Pro Max 22kW will allow you to charge your electric car or hybrid with 22kW of power.

Max version is equipped with Type 2 Socket but you can change it for 6 or 10 meter integrated cable, making the device small and allowing you to charge your vehicle almost instantly.

You don't need an additional cable - we took care of everything for you.

Quick look on 2 Pro Max

Designed with the user in mind, the Green Wallbox 2 Pro Max is a combination of minimalist design with high quality engineering and safety.

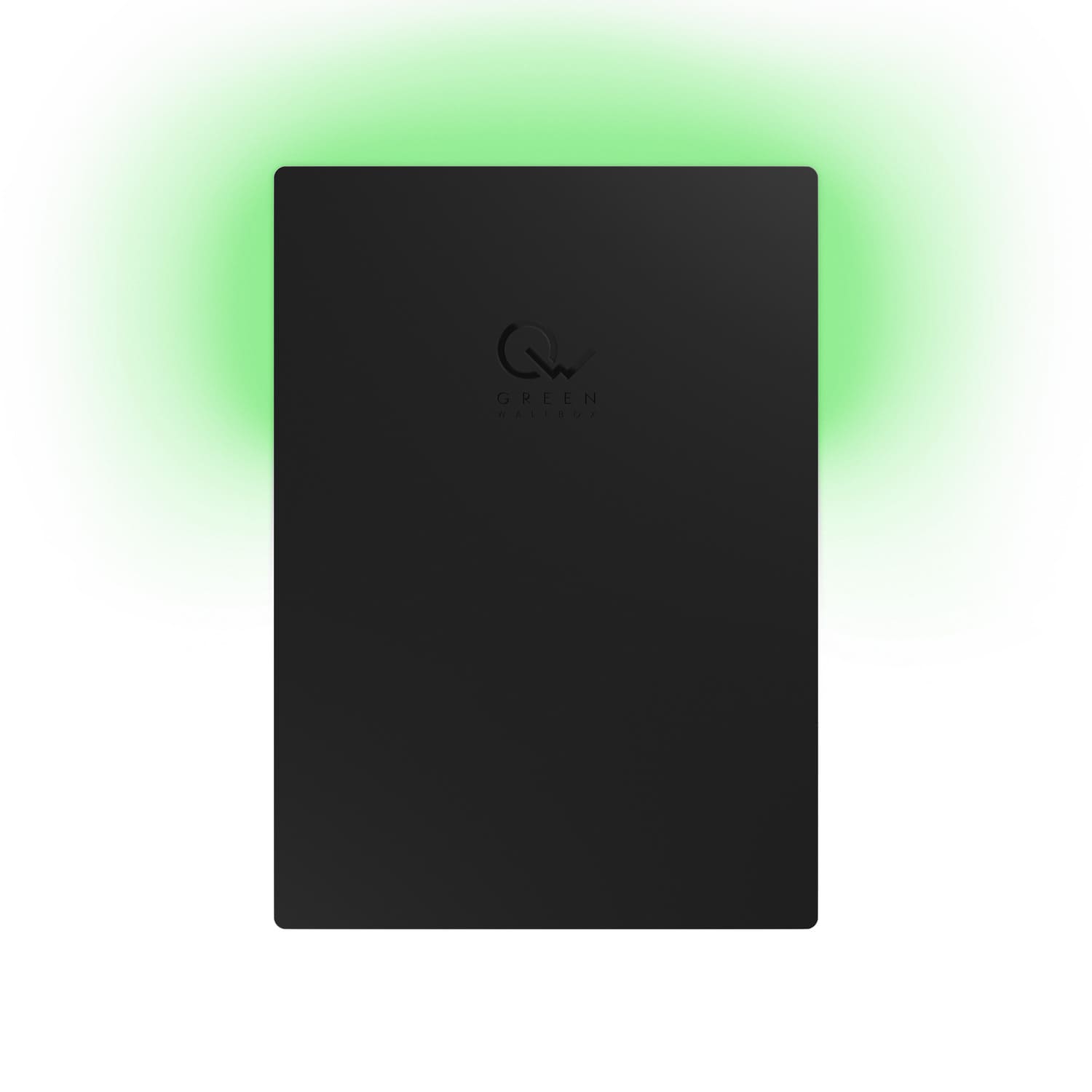

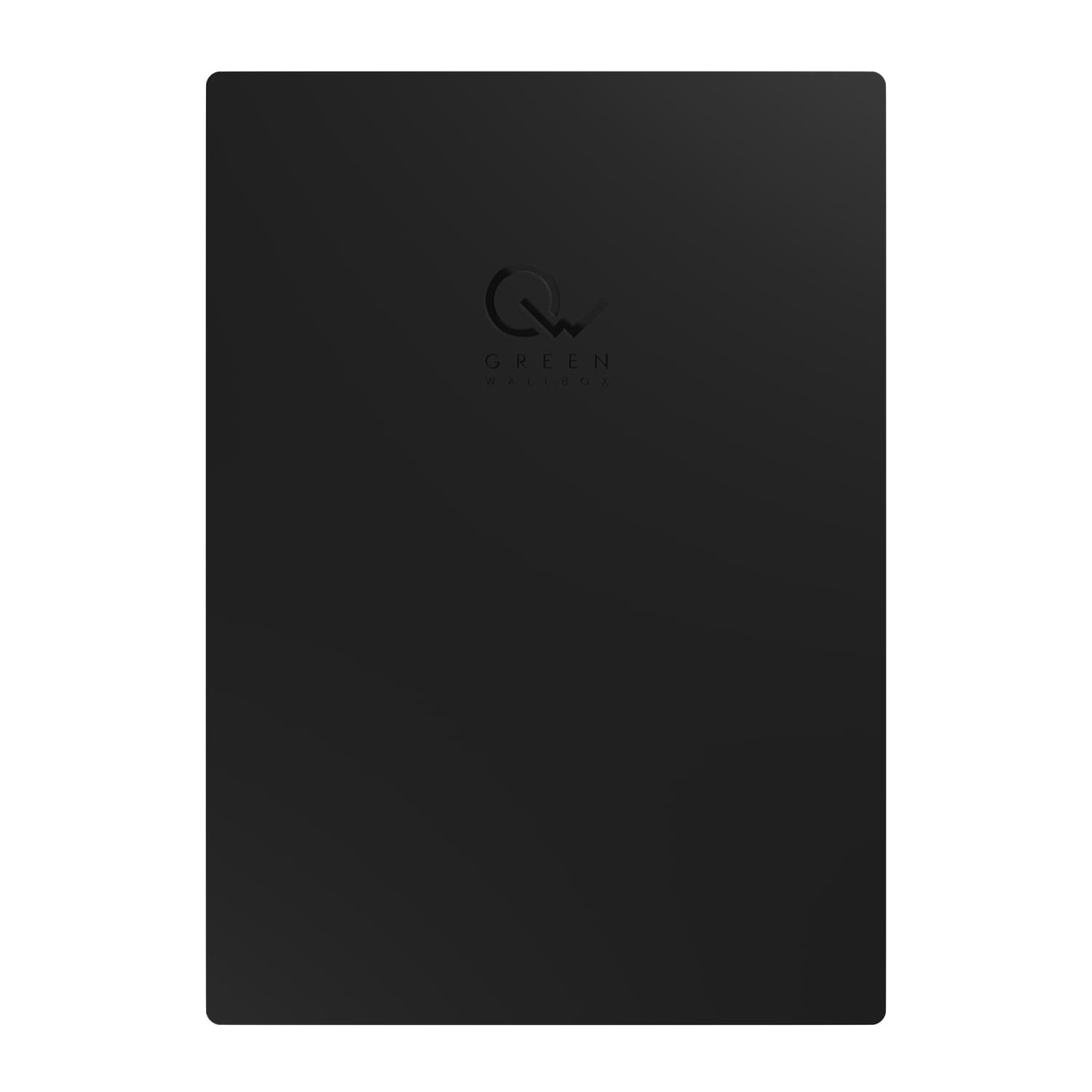

Black glass front

The front is made of high-quality frosted tempered glass. Behind it hides all the control electronics. In addition, you can purchase an interchangeable front made of glass or wood. Personalize your device to suit you.

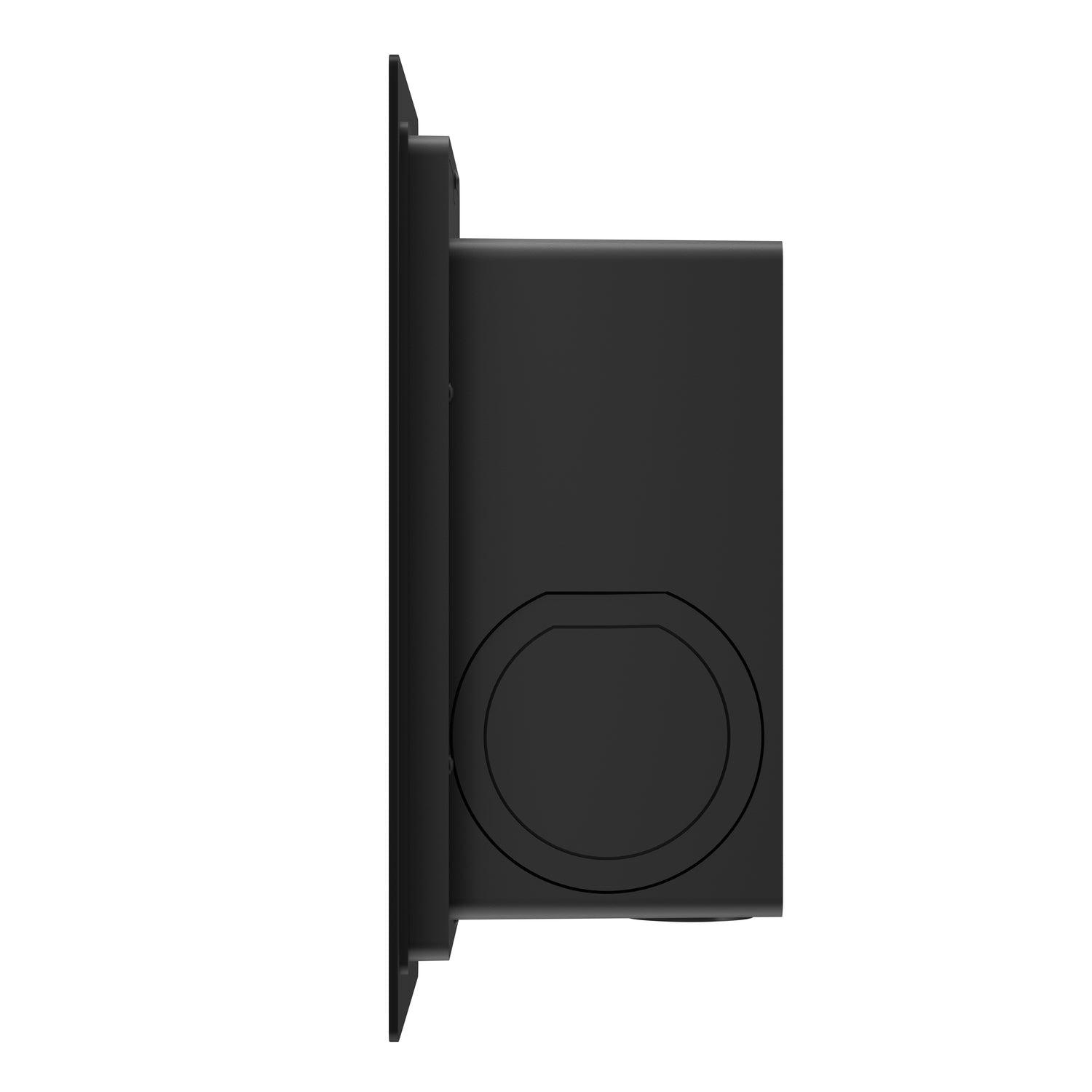

Housing with cable hanging option

It takes up as much space as it need - a thickness is only 130mm.

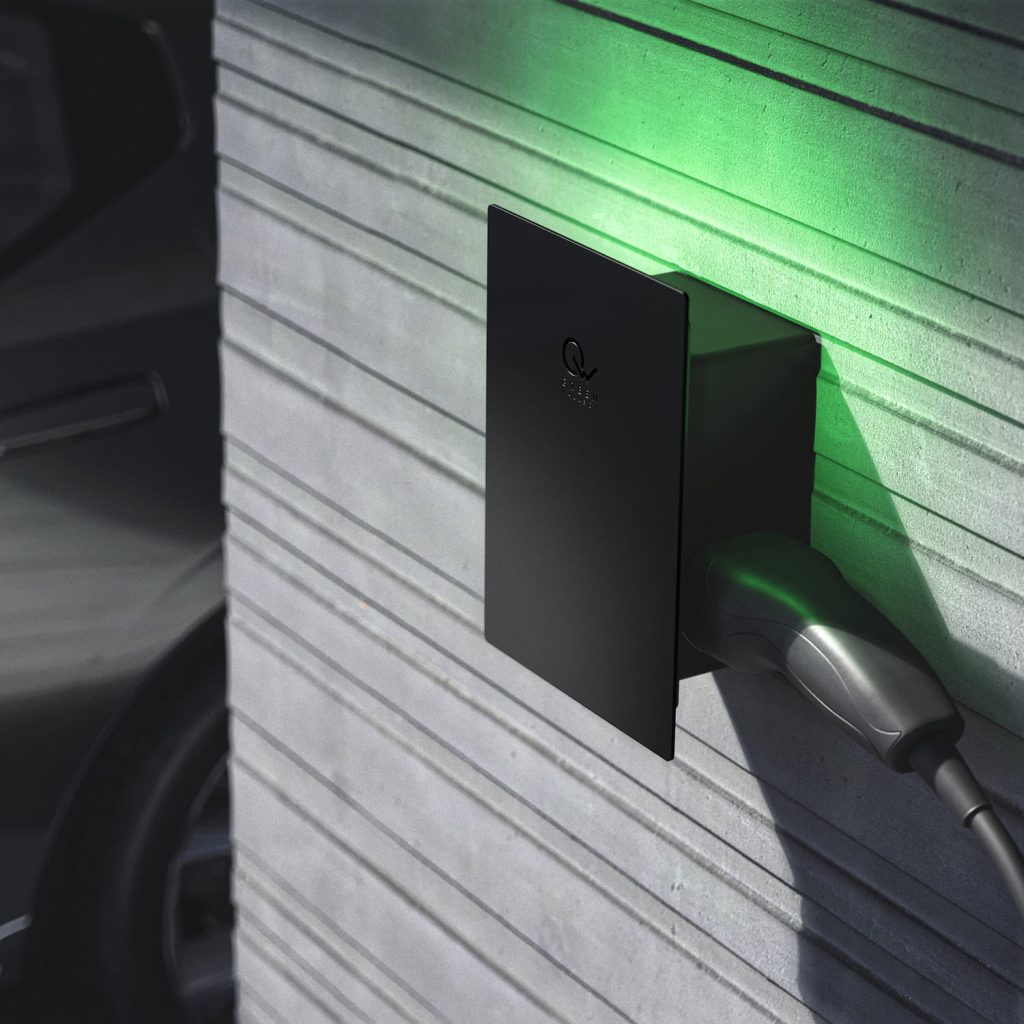

Type 2 socket or integrated cable? It's your choice.

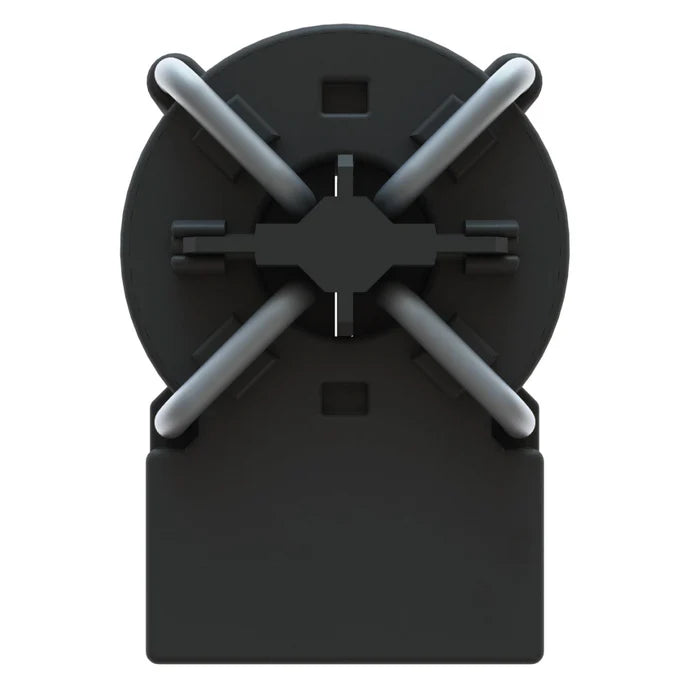

As standard, the Max version is equipped with a Type 2 socket, and there is also the option of choosing a device with an integrated cable of 6 or 10 meters. In the case of the version with a cable on the side, instead of a socket, there is a convenient holder for the plug.

Waterproof
Robust construction
Temperature resistant
Mobile app control

3 or 5 years door-to-door warranty

We are confident in our products that's why we provide a 3-year door-to-door warranty. You can also extend warranty up to 5 years.

For safety: yours and car's

We care about the safety of you, your car and the installation. That's why Green Wallbox 2 Pro has a number of safety features.

The waterproof and dustproof design allows for outdoor installations.
RCD AC 30mA / DC 6mA - it will detects AC and DC leakage.
The device has 3 temperature sensors and in the cable version there is additional in the plug. In case of overheating, the charging power will be reduced or turned off.
By default, the device has a Plug&Play mode and charging will start when the plug is inserted into the car. You can disable the P&P mode and authorize charging with a mobile app, NFC card or give access to another person.

We have also created a dedicated Green Wallbox app - now you can control the charging process from anywhere on earth.

Manage your chargers

Manage multiple chargers with ease - at home and at work

Check current charging session

You can check how much electricity has been charged or change the charging power - remotely from anywhere in the world.

Set charging schedules

Charge your car at convenient times - for example, during a better price tariff or while you are producing electricity from photovoltaics.

Manage users

Manage users - give access to the charger to your children, a neighbor or a friend who has come to visit. You can also give access to employees.

View charging history

Analyze your charging. You can preview each session and see how much electricity was charged, what the charging time was, and who authorized the charging.

Turn on Smart charging

Dynamic Load Balancing - Automatically adjust the charging power according to the current consumption to not exceed the contract power.

Eco charging - Charge your car only from the electricity produced by your photovoltaic system.

Group charging - Combine multiple devices into one group and dynamically change the charging power between them.

Smart charging available soon by update. Additional power meter may be required

Customize your Green Wallbox 2 Pro charger

As standard, the Green Wallbox 2 Pro Slim and Max are equipped with a black front made of frosted glass. Interchangeable fronts are also available - also made of natural materials such as wood or stone.

Check all available fronts

Black glass

Made of high-quality frosted tempered glass. You will get this one always with you Green Wallbox 2 Pro.

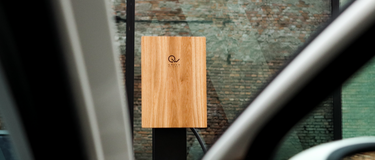

Walnut

Made of natural walnut wood protected with oil.

Check now

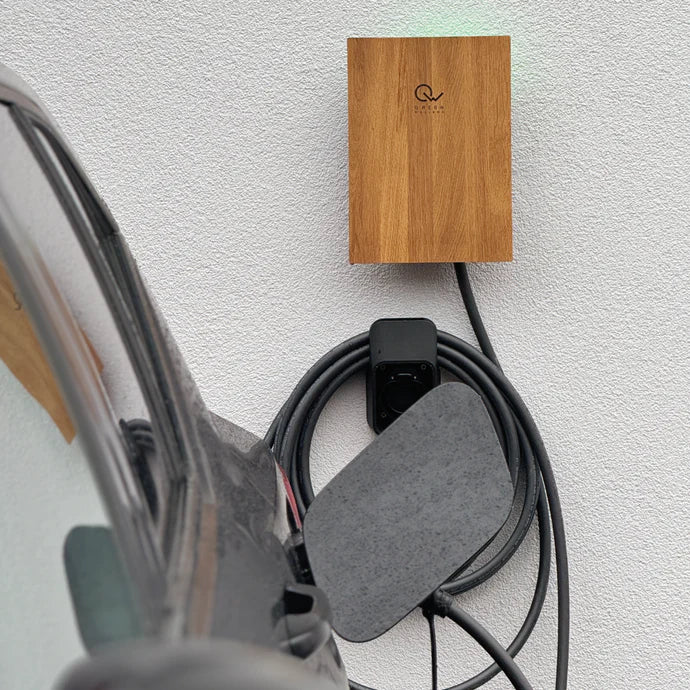

Oak

Made of natural oak wood protected with oil.

Check now

White stone

Made of white conglomerate.

Check now

Made in Europe

Green Wallbox 2 Pro series devices are designed and manufactured in the European Union. This is a guarantee of reliability and compliance with the highest safety standards. The chargers also receive ongoing support and new features according to user demand.

Specification of Green Wallbox 2 Pro Max

Green Wallbox 2 Pro Max 22kW

Max power:

22kW

Phases: 3

Connector:

Type 2 Socket

or

Integrated 6 or 10 meters Type 2 cable

Dimensions:

314 / 224 / 130 mm

Connection: Bluetooth and WiFi

Mobile App:

Green Wallbox (iOS / Android)

Access control:

Mobile App / NFC Card

Choose

Green Wallbox 2 Pro Max 11kW

Max power:

11kW

Phases: 3

Connector:

Type 2 Socket

or

Integrated 6 or 10 meters Type 2 cable

Dimensions:

314 / 224 / 130 mm

Connection: Bluetooth and WiFi

Mobile App:

Green Wallbox (iOS / Android)

Access control:

Mobile App / NFC Card

Check

Green Wallbox 2 Pro Max 7.4kW

Max power:

7.4kW

Phases: 1

Connector:

Type 2 Socket

or

Integrated 6 or 10 meters Type 2 cable

Dimensions:

314 / 224 / 130 mm

Connection: Bluetooth and WiFi

Mobile App:

Green Wallbox (iOS / Android)

Access control:

Mobile App / NFC Card

Check

Frequently Asked Questions

Still not sure which cable fits your needs? Read our answers to frequently asked questions or contact customer service >

What is the difference between the Green Wallbox 2 Pro Slim and the Green Wallbox 2 Pro Max?

The difference between the 2 Pro Slim and the 2 Pro Max is the size and the way the car is connected for charging.
2 Pro Slim is thinner (76mm) and is available with an integrated 6 or 10 meter Type 2 cable.
2 Pro Max device is thicker (130mm) and is available with a Type 2 Socket or an integrated 6 / 10 meter Type 2 cable. The cable version also has a plug holder on the side of the device.

What is the maximum charging power?

The maximum charging power depends on:

  1. The selected device (1-phase - 7.4kW or 3-phase 11kW and 22kW)
  2. The maximum charging power of the car (each car has been equipped by the manufacturer with On Board Charger - OBC, which manages the charging power of the vehicle and determines the maximum charging power). Before choosing a device, make sure which OBC has been installed in your car. You can get this information from your car dealer or contact customer service.

Charging power can also depend on the current temperature or state of charge of the car.

Can I give multiple users access to the charger?

Yes, just make sure that anyone you want to give access to creates an account in the app - you will be able to share the charger with that person.

Can I use the Green Wallbox 2 Pro without using the app?

Yes, the standard configured device does not require installing a mobile app. Just plug in the device and connect the car for charging to begin.

Is WiFi required to use the mobile app?

You can also set the parameters of the charger with Bluetooth connection. However, you will not be able to view the charger remotely and you will not see the charging history.

Which maximum charging power should I choose?

Power selection should be adjusted based on two factors:

  1. The installation to which you are connecting the device. If it is a single-phase installation - choose a 7.4kW device (11kW and 22kW devices can also operate on a single phase, in which case their maximum powers are 3.6kW for 11kW and 7.4kW for 22kW). For a 3-phase installation, it is recommended to choose an 11kW or 22kW unit. It is also important to keep in mind the contract with the power supplier, which may specify the maximum power consumption (e.g. 16kW - in this situation choose an 11kW device). In addition, the cross-section of the cable to which you connect the device is important. For 7.4kW this is 3x6mm2, for 11kW 5x2.5mm2, and for 22kW 5x6mm2.
    If you are not sure about the above, consult an authorized electrician about the choice of device.
  2. A secondary is the car's charging capability determined by its OBC (On Board Charger). For plug-in hybrids, the usual maximum charging power is 3.6kW or 7.4kW. For fully electric cars, it's usually 7.4kW or 11kW, in some cases 22kW. You can find out what the maximum charging power of your vehicle is from your vehicle dealer or contact customer service.

    A 22kW device can charge vehicles with an OBC of 11kW however, the charging power will be a maximum of 11kW. Also 11kW can charge car with 7.4kW OBC but it will charge 3.6kW.

Plese contact customer service for more informations
